产品名称：	HH-CH4-GC 安捷伦7890A便携式甲烷转化炉
产品型号：	HH-CH4-GC
品牌：	1356
产品数量：
产品单价：	面议
日期:	2021-12-23

HH-CH4-GC 安捷伦7890A便携式甲烷转化炉的详细资料

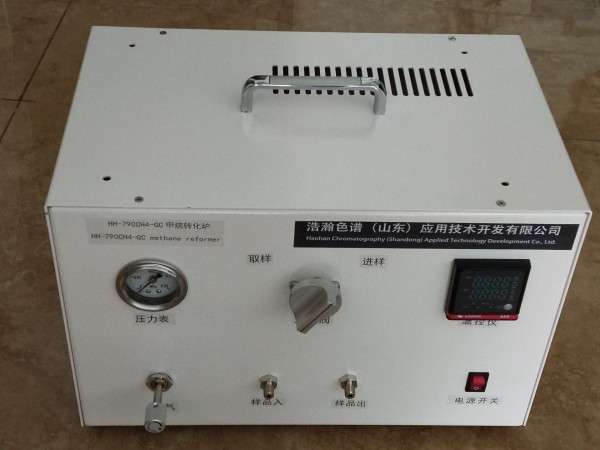

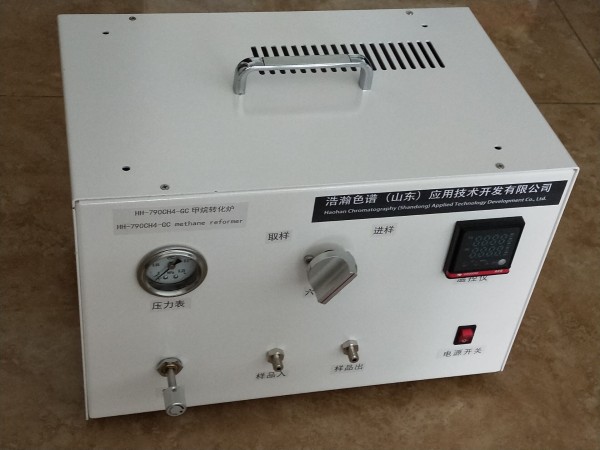

安捷伦7890A便携式甲烷转化炉
安捷伦7890A便携式甲烷转化炉 详细信息：

聚丙烯装置生产中对丙烯原料中一氧化碳、二氧化碳含量控制较为严格,特别是使用茂金属催化剂后,对丙烯中的一氧化碳、二氧化碳含量要求提升到uL/m~3级,而目前所用的分析方法GB/T 3394-2009《工业用乙烯、丙烯中微量一氧化碳、二氧化碳和乙炔的测定气相色谱法》低检出限只能达到mL/m~3级,完全不能适应目前更高的要求。

浩瀚色谱（山东）应用技术开发有限公司通过对分析方法实验条件的改造优化,以及试验摸索,建立了可检测丙烯中微量一氧化碳、二氧化碳分析方法,结果表明:经优化后的方法测定丙烯中一氧化碳与二氧化碳低检出限分别可达5uL/m~3与18uL/m~3,方法3次重复测定被测组分的相对标准偏差均小于12.85%,数据的精密度良好,可满足聚丙烯装置试用茂金属催化剂对丙烯检测的技术要求。

浩瀚色谱研制的HH-CH4-GC便携式甲烷转化炉具有以下优点：

1.轻巧，方便，便携式。
2.安装，调试简单，用户可独立完成。
3.和任何厂家，任何型号的气相色谱仪，均可实现互联互通，通用型。
4.连接仪器无需对仪器进行改造，效率高。

此款产品为浩瀚色谱，的
近配置安捷伦7890A安装完毕，运行正常。

安捷伦7890A便携式甲烷转化炉  测试谱图：



Agilent 7890A portable methane reformer
Agilent 7890A portable methane reformer Details:

In the production of polypropylene plants, the control of carbon monoxide and carbon dioxide content in propylene raw materials is relatively strict, especially after the use of metallocene catalysts, the requirements for carbon monoxide and carbon dioxide content in propylene are increased to uL/m~3, and the current analysis method GB /T 3394-2009 "Gas Chromatography Method for the Determination of Trace Carbon Monoxide, Carbon Dioxide and Acetylene in Industrial Ethylene and Propylene", the minimum detection limit can only reach mL/m~3, which is totally unable to meet the current higher requirements.

Haohan Chromatography (Shandong) Applied Technology Development Co., Ltd. has established an analytical method that can detect trace amounts of carbon monoxide and carbon dioxide in propylene through the modification and optimization of the experimental conditions of the analytical method and experimentation. The minimum detection limit of carbon dioxide can reach 5uL/m~3 and 18uL/m~3, respectively. The relative standard deviation of the measured component of the method for three repeated determinations is less than 12.85%, and the precision of the data is good, which can meet the trial use of the polypropylene device. The technical requirements of metallocene catalyst for the detection of propylene.

The HH-CH4-GC portable methane reformer developed by Haohan Chromatography has the following advantages:

1. Lightweight, convenient and portable.
2. The installation and debugging are simple, and the user can complete it independently.
3. It can be interconnected with any manufacturer and any type of gas chromatograph, universal type.
4. There is no need to modify the instrument to connect the instrument, and the efficiency is high.

This product is a vast chromatogram, unique
The latest configuration of Agilent 7890A has been installed and it is running normally.

Agilent 7890A portable methane reformer test spectrum:
