HHJH-1气体净化管（器） 图片：

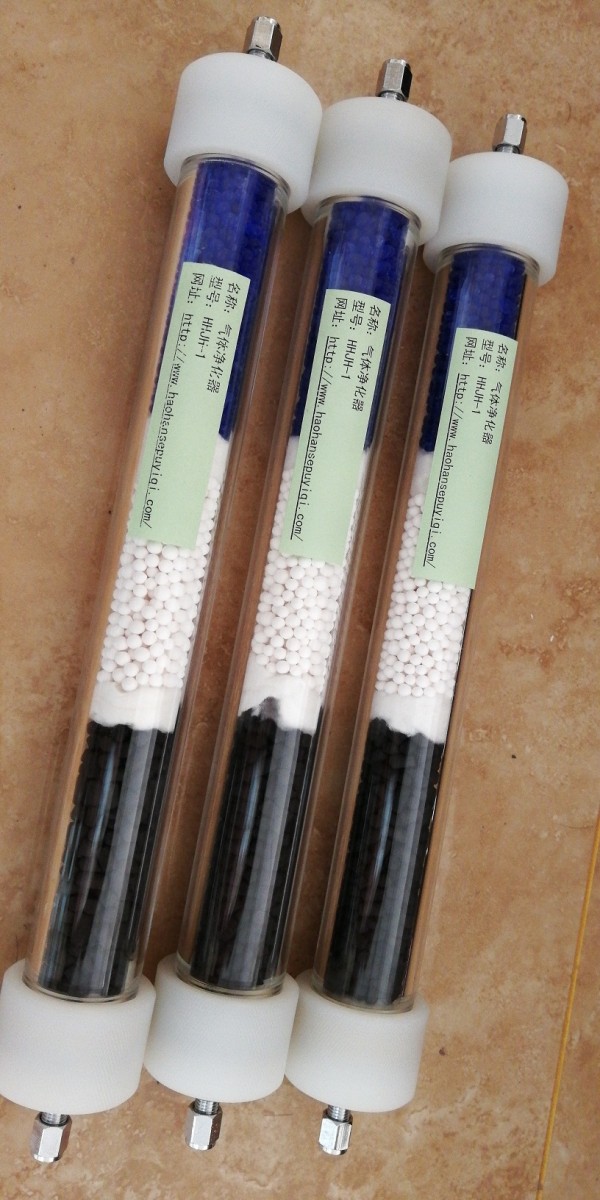

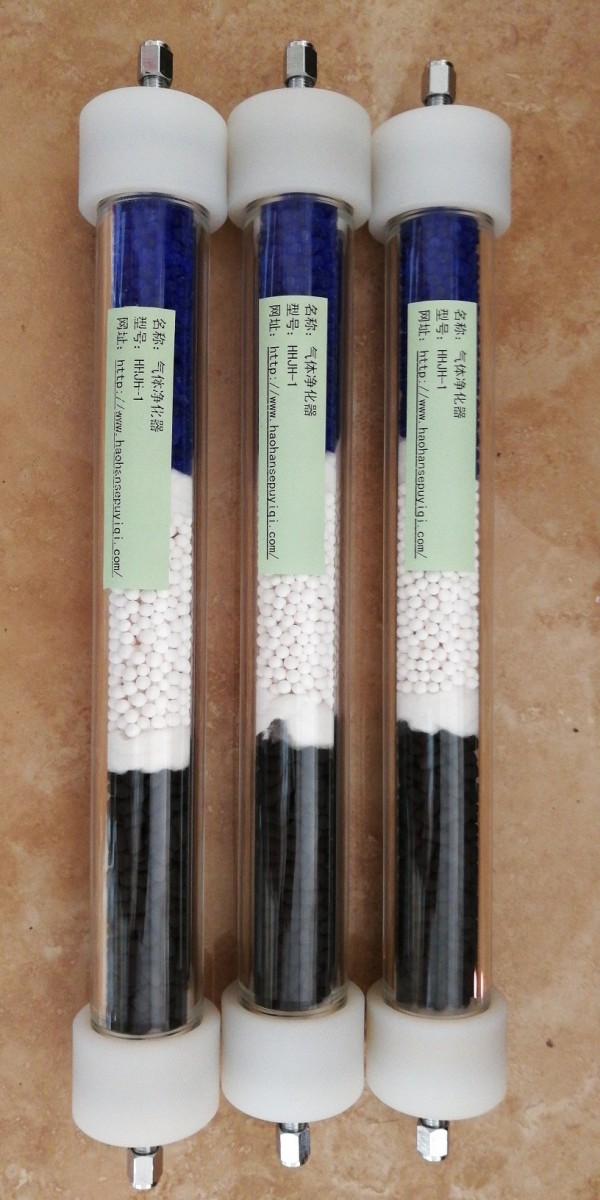

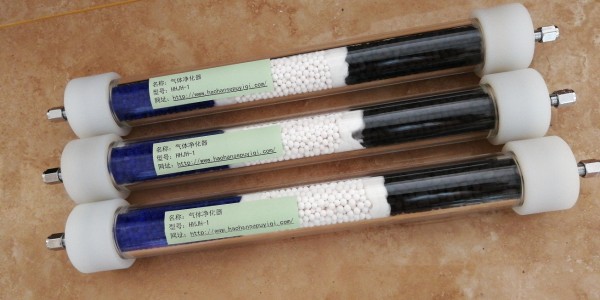

HHJH-1 gas purification pipe (device)
HHJH-1 gas purification pipe (device) Details:
The purpose of the gas purifier is to remove impurities such as moisture, oxygen, and hydrocarbons from the carrier gas and detector gas. Continuous contact of the column with oxygen and moisture, especially at high temperatures, can quickly cause serious damage to the column. If the gas leaks at the joint, the purifier can also play a protective role. Prior to the purifier failure, impurities entering the pipeline due to leakage are absorbed by the purifier, creating an opportunity to detect and eliminate leaks before the column or instrument is destroyed.

Gas purifier technical parameters:
1. Input pressure: 0.5Mpa;
2. Output pressure: 0-0.4Mpa (gas chromatograph auxiliary equipment)
3. Working environment temperature: 10 ° C ~ 40 ° C
4. Working conditions: Ambient temperature: 10 ° C ~ 40 ° C
Relative humidity ≤ 85%
5. Connection size: 3mm (1/8)
Specification: 305mm*4mm
HHJH-1 gas purification pipe (device)
